Basement Wall Support & Waterproofing in Concord, NH | Matt Clark's Northern Basement Systems
Challenge

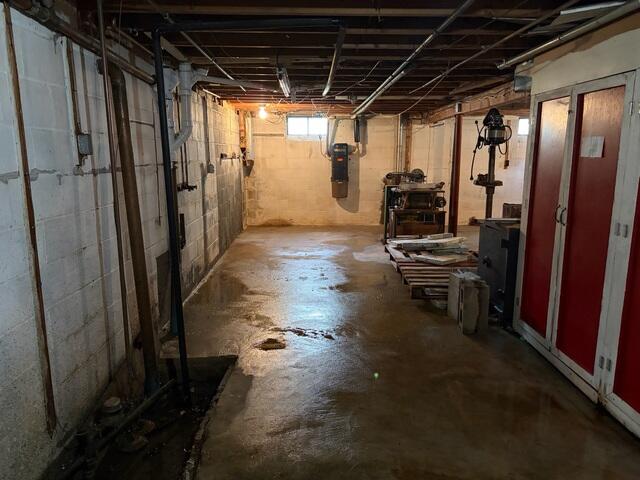

This Concord, New Hampshire, homeowner faced multiple basement concerns. Water intrusion and high humidity made the basement damp and uncomfortable, and one foundation wall showed signs that it needed additional structural support. The homeowner wanted a comprehensive solution that addressed both the water problem and the compromised wall. Our team inspected the basement, foundation walls, drainage needs, and exterior discharge area. We determined the basement would benefit from a complete waterproofing system and humidity control. The affected foundation wall also required stabilization to prevent further movement.
Solution
Matt Clark's Northern Basement Systems installed a combination of waterproofing, moisture-control, drainage, and foundation-repair products designed to work together.

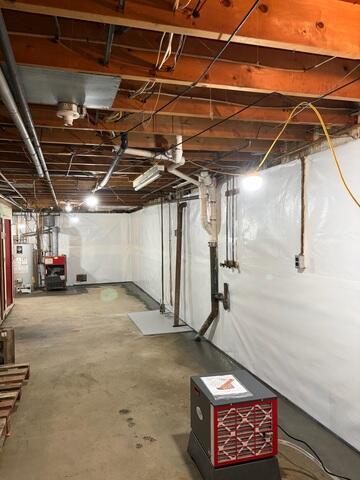

The CleanSpace Wall System was installed along the basement walls to provide a clean, bright wall covering while directing water entering through the foundation down into the waterproofing system.

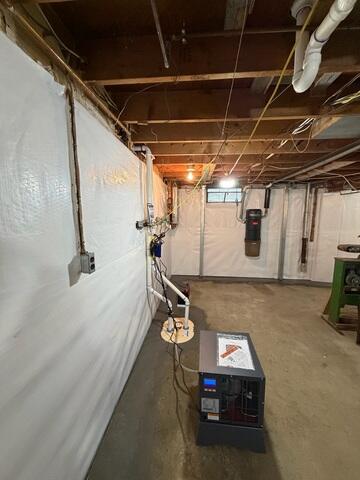

A TripleSafe sump pump system was installed to collect and remove water from the basement. Outside the home, we added IceGuard fittings to the discharge line to provide an emergency escape for water if the buried line becomes blocked or freezes. The discharge was then carried away from the foundation and released through a LawnScape outlet.
To control basement humidity, we installed a SaniDry high-performance dehumidifier. Unlike a typical portable unit, SaniDry is designed specifically to maintain healthier humidity levels throughout basement and crawl space environments.

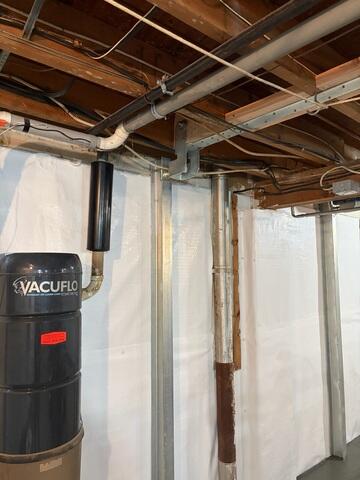

Finally, we installed PowerBrace supports along the affected foundation wall. These heavy-duty steel I-beams provide permanent stabilization without requiring exterior excavation and can help prevent additional inward movement of the wall.
Products Installed
- CleanSpace Wall System – A durable wall system that creates a clean, bright appearance while directing wall moisture into the basement's waterproofing system.
- TripleSafe Sump Pump System – A three-pump system designed with multiple levels of pumping protection, including battery-backup capability for added protection during power outages.
- SaniDry Dehumidifier – A high-capacity basement dehumidification system designed to remove excess moisture from the air and maintain comfortable humidity levels.
- IceGuard – Specially designed discharge fittings that allow sump water to escape outside if the buried discharge line freezes or becomes blocked.
- LawnScape Outlet – A discreet discharge-line termination that releases pumped water safely away from the foundation.
- PowerBrace Wall Repair System – Zinc-coated steel I-beams secured along the foundation wall to provide permanent stabilization and prevent further inward movement.
With the project complete, the homeowner now has an integrated system addressing water intrusion, excess humidity, drainage, and foundation-wall stability. The CleanSpace walls also transformed the basement's appearance, leaving the space considerably brighter and cleaner, while the PowerBrace system provides lasting structural support. This Concord project demonstrates why basement problems sometimes require more than a single product. By combining waterproofing, humidity control, exterior drainage, and foundation stabilization, Northern Basement Systems provided a comprehensive solution designed to protect the basement for years to come.
